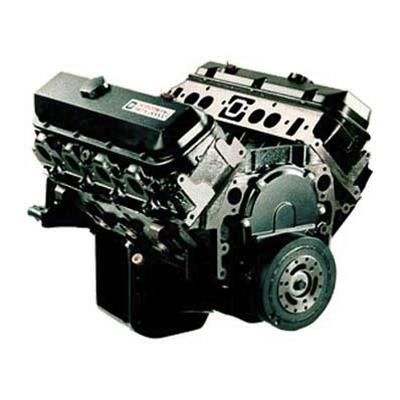

Chevy Big-Block V-8 502 CID Engine - GM (19433156)

Details

• Brand:



• SKU:

  19433156

• Description:

  A BIG-INCH ALTERNATIVE TO REBUILDING
  Don't bother repowering your trusty Big-Block-powered truck with a rebuild or reconditioned used engine. Our HT502 crate engine is an affordable alternative with more power and greater durability, including a whopping 541 lb.-ft. of trailer-tugging torque. That's more than the factory ever offered and more than you'll get with a stock-type rebuild.
  It is uniquely suited to pre-1978 trucks, but is adaptable to a variety of applications, and it's built with our latestgeneration block casting with four-bolt main caps. An all-forged rotating assembly delivers exceptional strength and durability, while a mild 8.75:1 compression ratio is suitable for regular pump gasoline at all altitudes and engine loads.
  Our assembly comes with the heads and a balancer installed. An induction system, ignition, starter, water pump and other accessories are required to finish the engine. All necessary components are available from Chevrolet Performance.
  TECH SPECS
  Part Number: 88890534
  Engine Type: Chevy Big-Block V-8
  Displacement (cu in): 502
  Bore x Stroke (in): 4.47 x 4.00
  Block (P/N 19170540): Cast-iron with 4-bolt main caps
  Crankshaft (P/N 10183723): Forged steel
  Connecting Rods (P/N 19170198): Forged steel, shot peened
  Pistons (P/N 12533507): Forged aluminum
  Camshaft Type (P/N 12552296): Hydraulic roller
  Camshaft Lift (in): .480 intake / .483 exhaust
  Camshaft Duration (@.050 in): 204° intake / 209° exhaust
  Cylinder Heads (P/N 12562917): Iron oval port; 118cc chambers
  Valve Size (in): 2.07 intake / 1.73 exhaust
  Compression Ratio: 8.75:1
  Rocker Arms (P/N 19260993): Stamped steel
  Rocker Arm Ratio: 1.7:1
  Flexplate (P/N 10185034): 14"
  Recommended Fuel: Regular pump
  Ignition Timing: 34° Total at 4,000 rpm
  Maximum Recommended rpm: 5,500
  Balanced: External
  INSTALLATION NOTES

  • Requires the addition of carburetor, intake manifold, water pump, fuel pump, starter, distributor and ignition system (not included)
  • Clutch linkage bosses are now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads, for clearance
  • 502 engines now have a mechanical fuel pump boss! NOTE: There is NO fuel pump lobe behind the boss.
  • Comes with an externally balanced 14" automatic transmission flexplate. Use externally balanced flywheel P/N 14096987 and 11" clutch assembly for manual transmission applications
  • Designed for pre-1976 street vehicles or any off-road vehicle
  • Not intended for marine applications

  NOTE: Distributor with melonized steel gear MUST be used with long-blocks and Partial engines with steel camshafts, or engine damage will occur.


• Replaces:

  12371054, 88890534
